Combining elements from the MINISTRA and the prestige ULTIMATUM XLS Model, the Majistra is a 2-way bookshelf design incorporating a 60mm true ribbon tweeter, and two 170mm bass/midrange drive units.

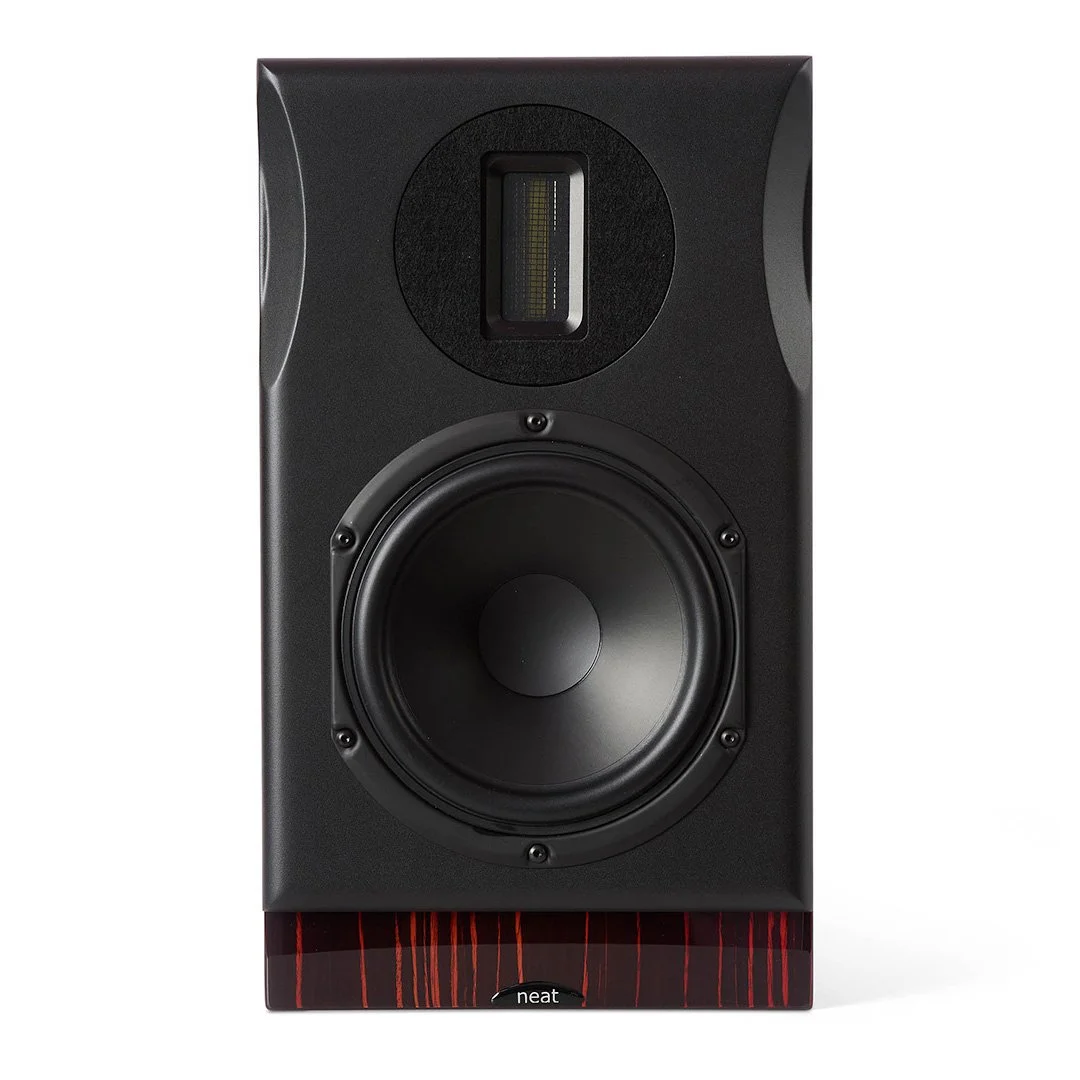

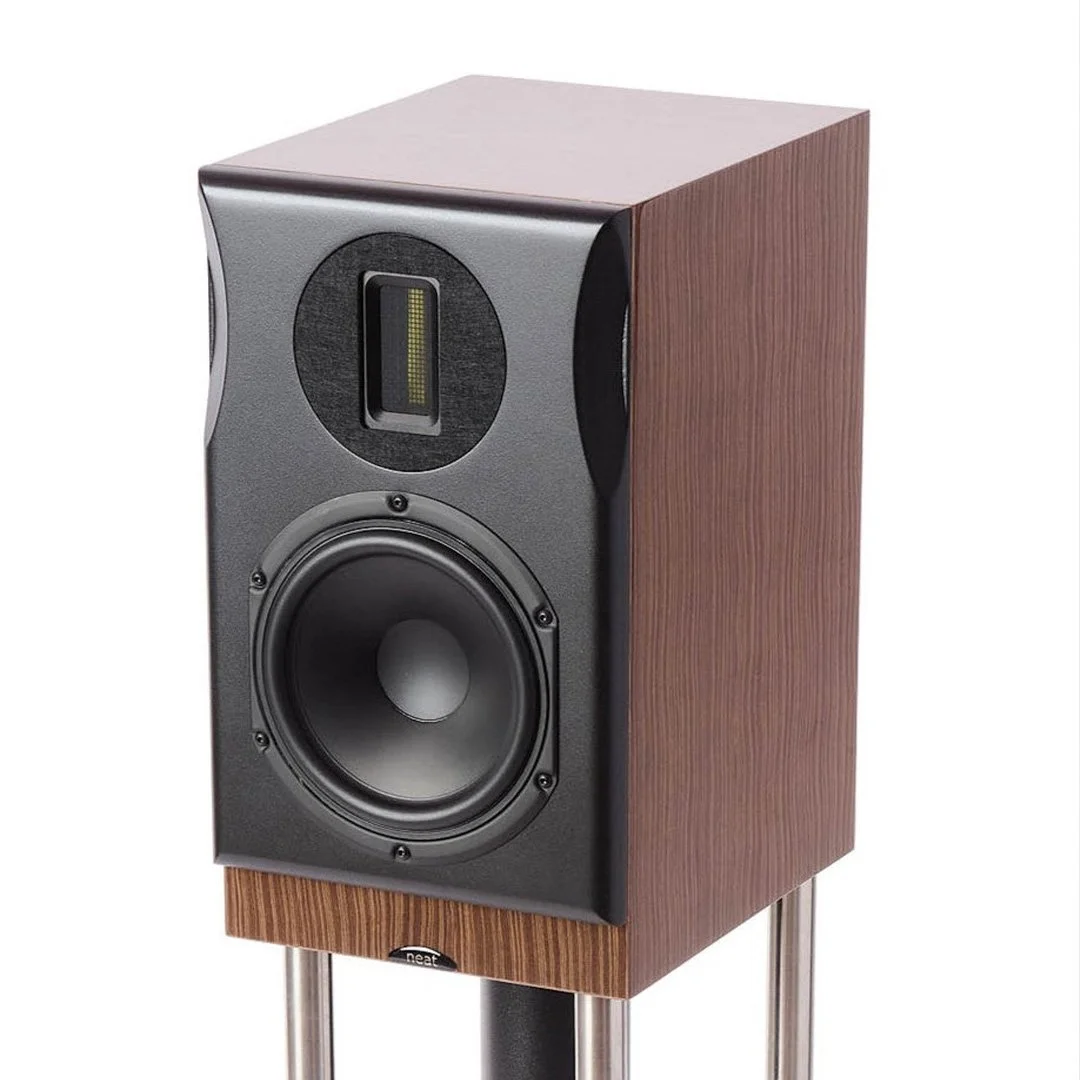

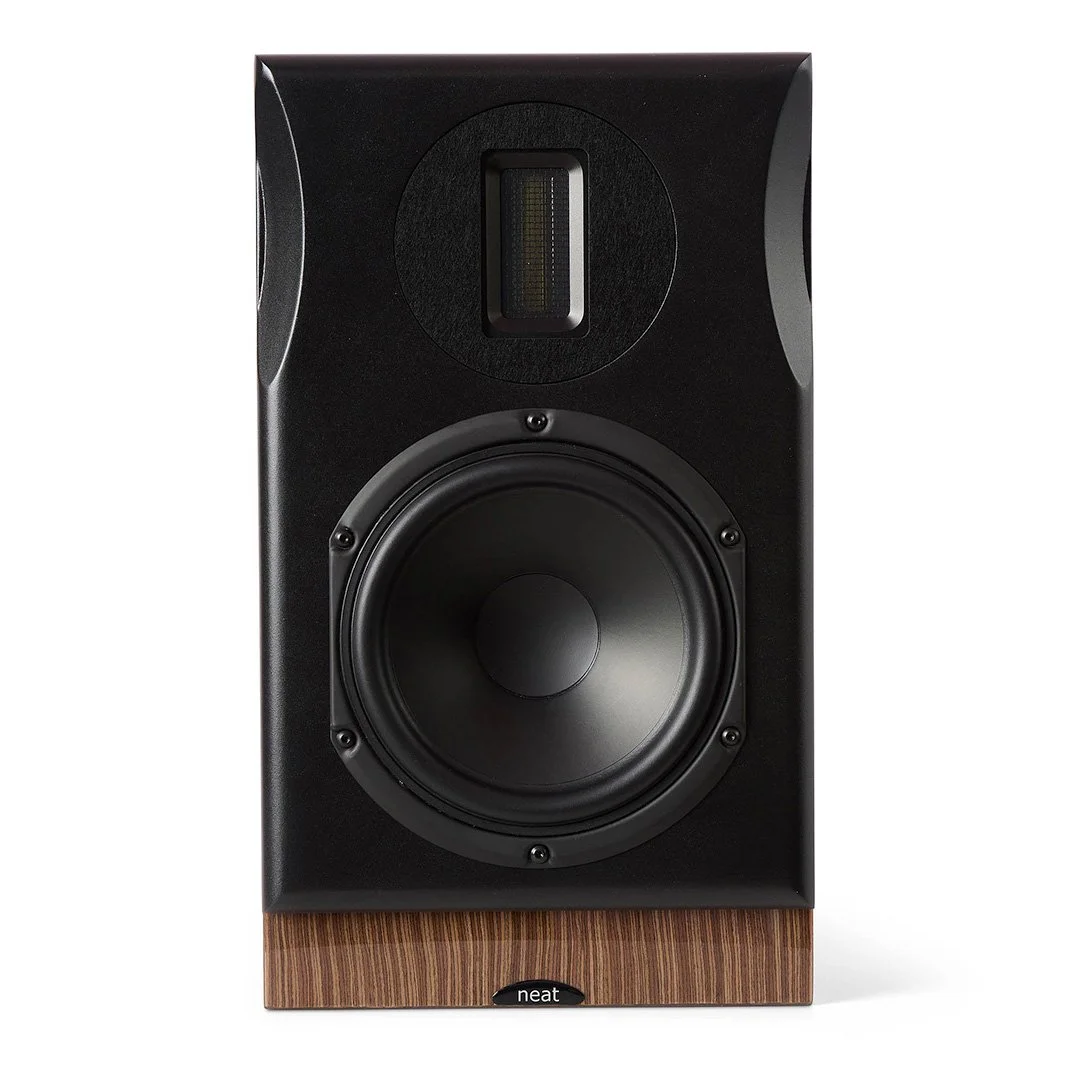

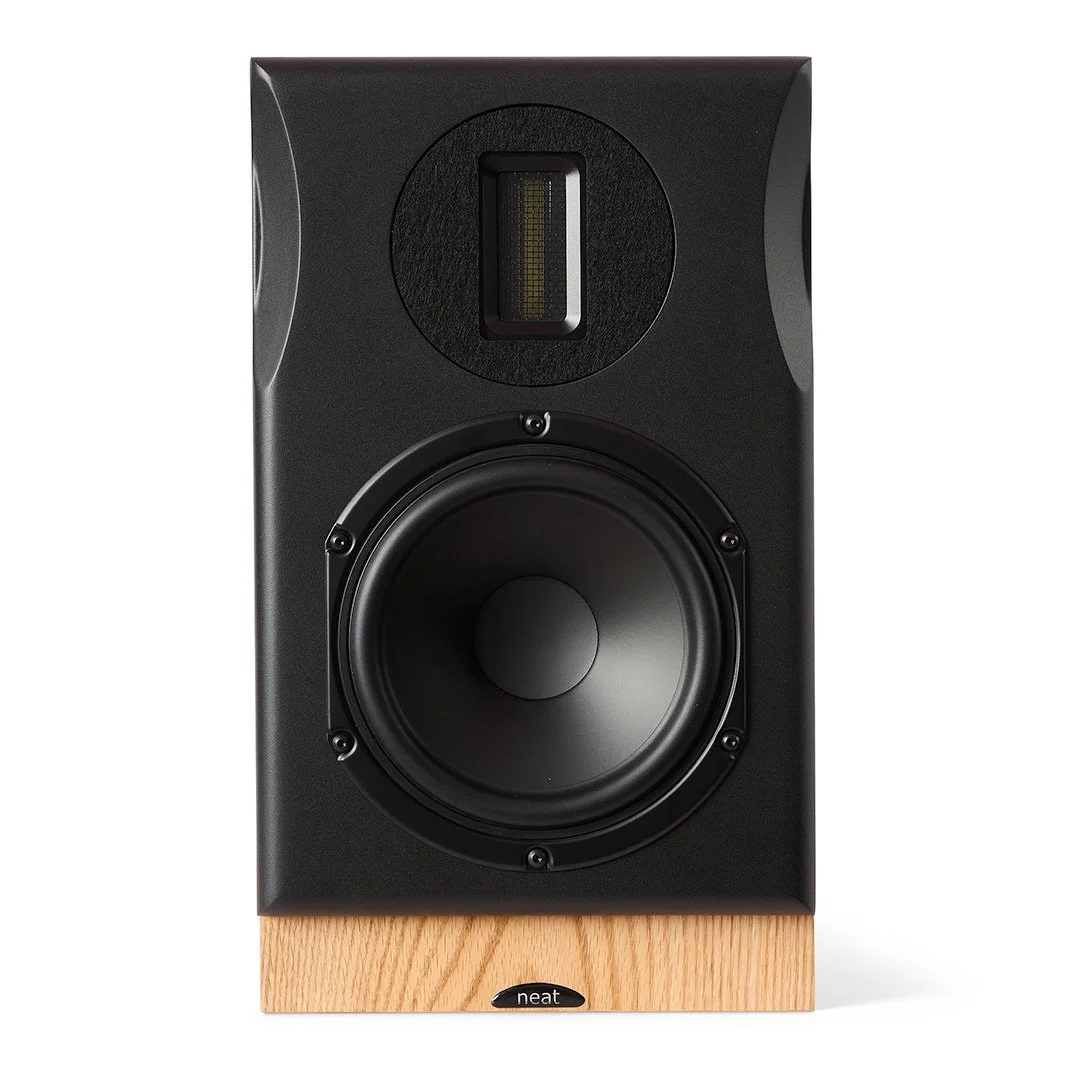

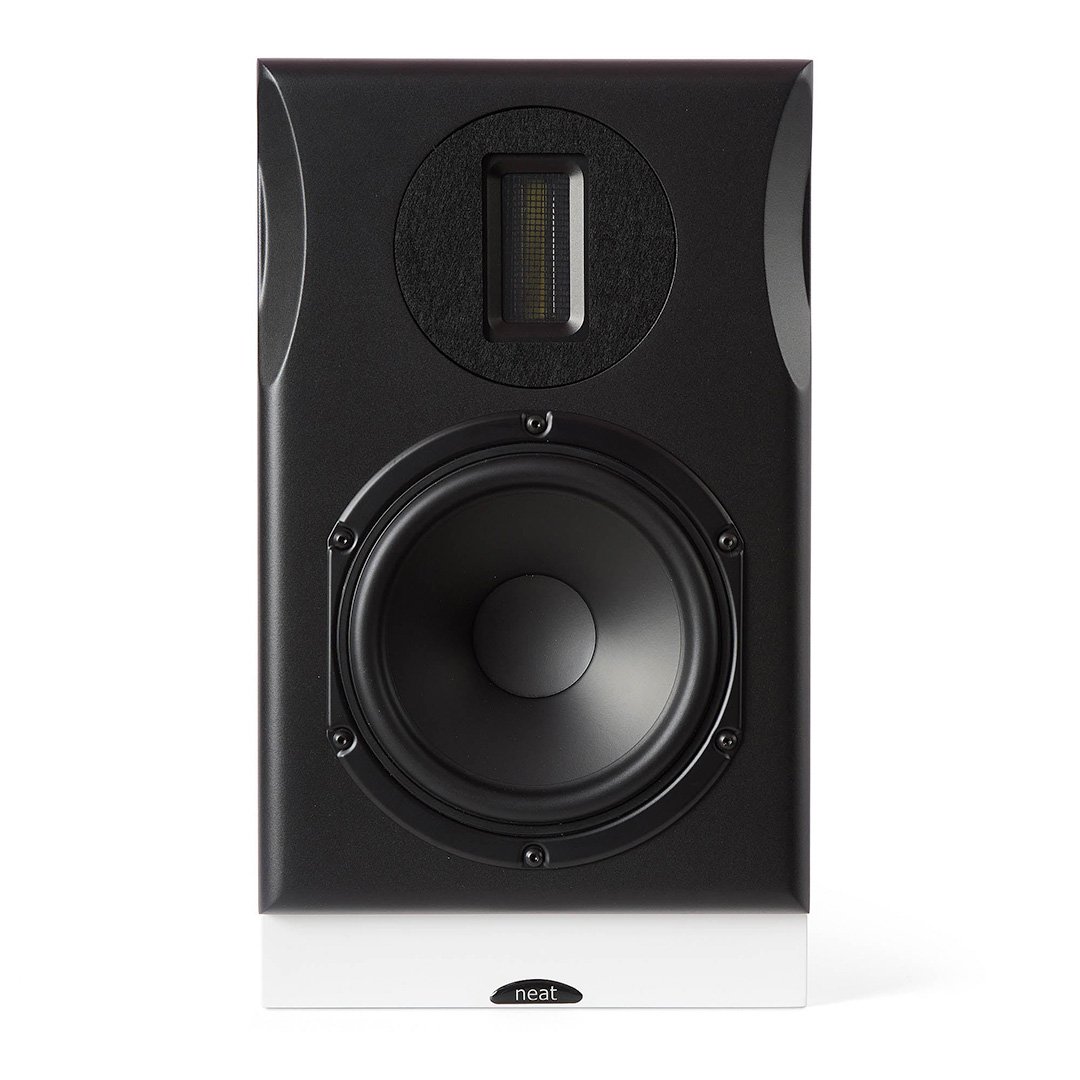

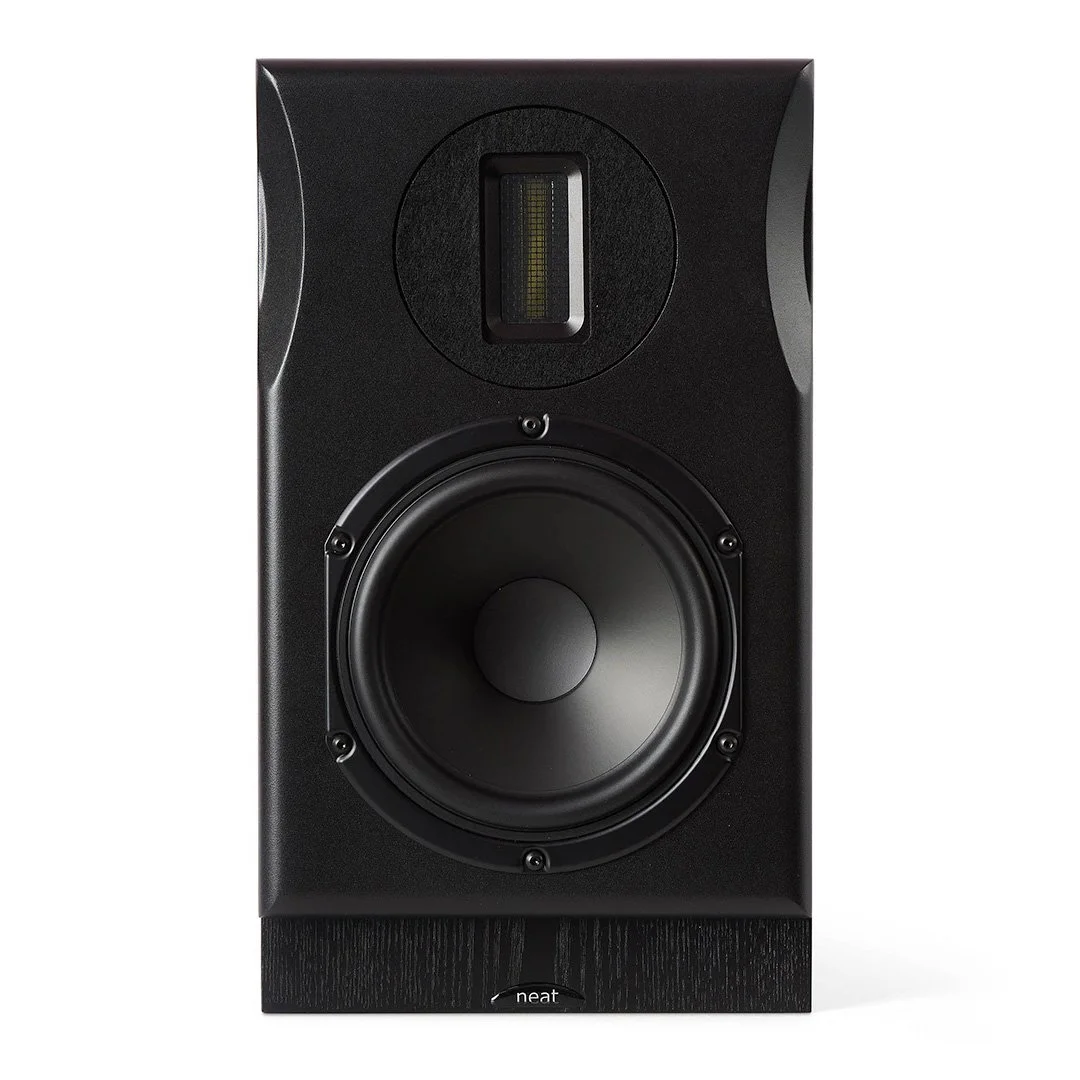

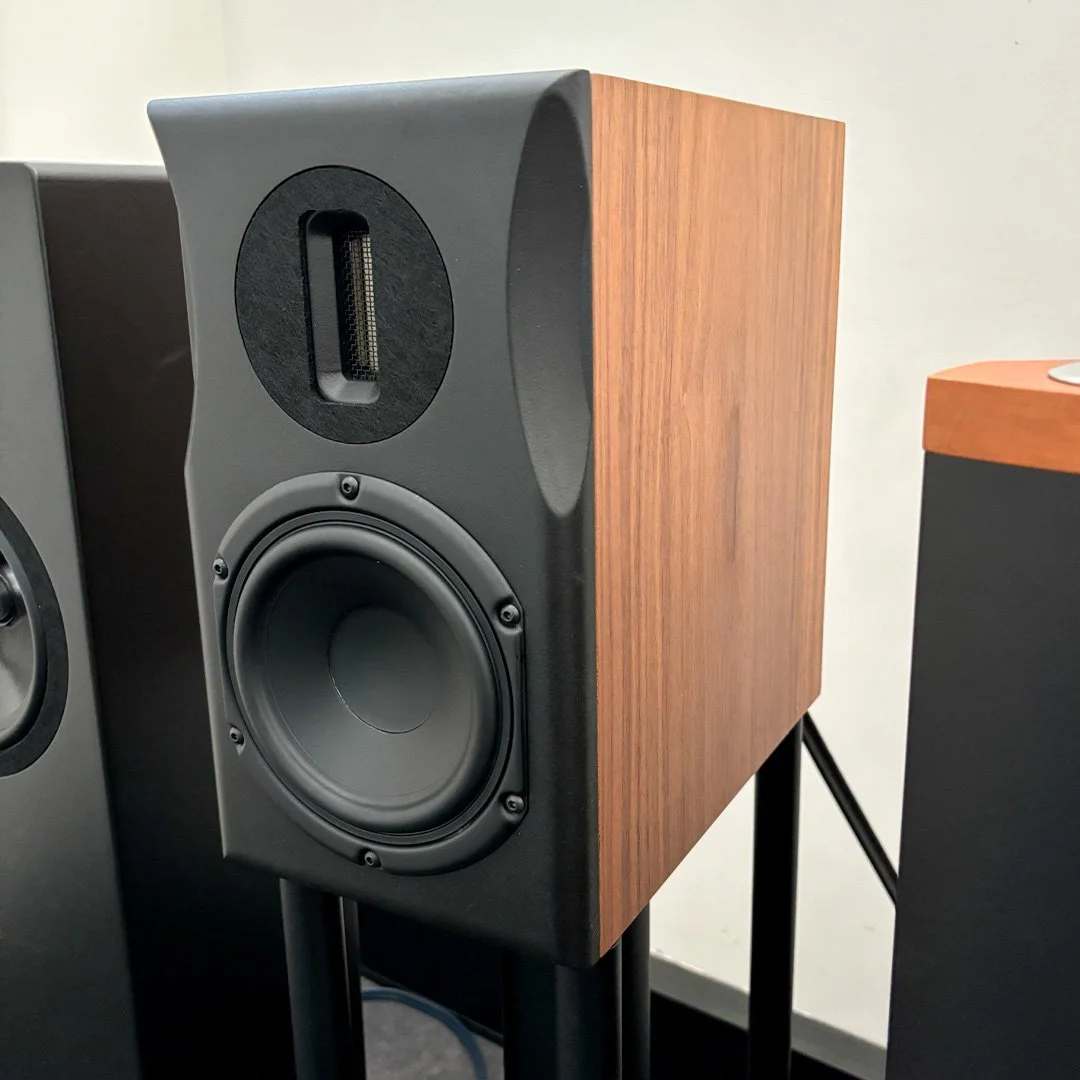

The front baffle, which is coupled to the cabinet via a polyethylene membrane, houses the ribbon tweeter and a 170mm drive unit handling bass and midrange frequencies.
Inside, mounted behind the main drive unit, is another identical unit. The space between these units is sealed, in iso-baric configuration. This form of bass loading delivers surprisingly deep and controlled bass performance from such a compact enclosure
The crossover is a minimal design, employing 1st & 2nd order slopes. The crossover components are all hard-wired, with point-to-point connections to maximise integrity. The crossover components are of premium audiophile quality and include high voltage polypropylene capacitors and low loss air-cored inductors.
-

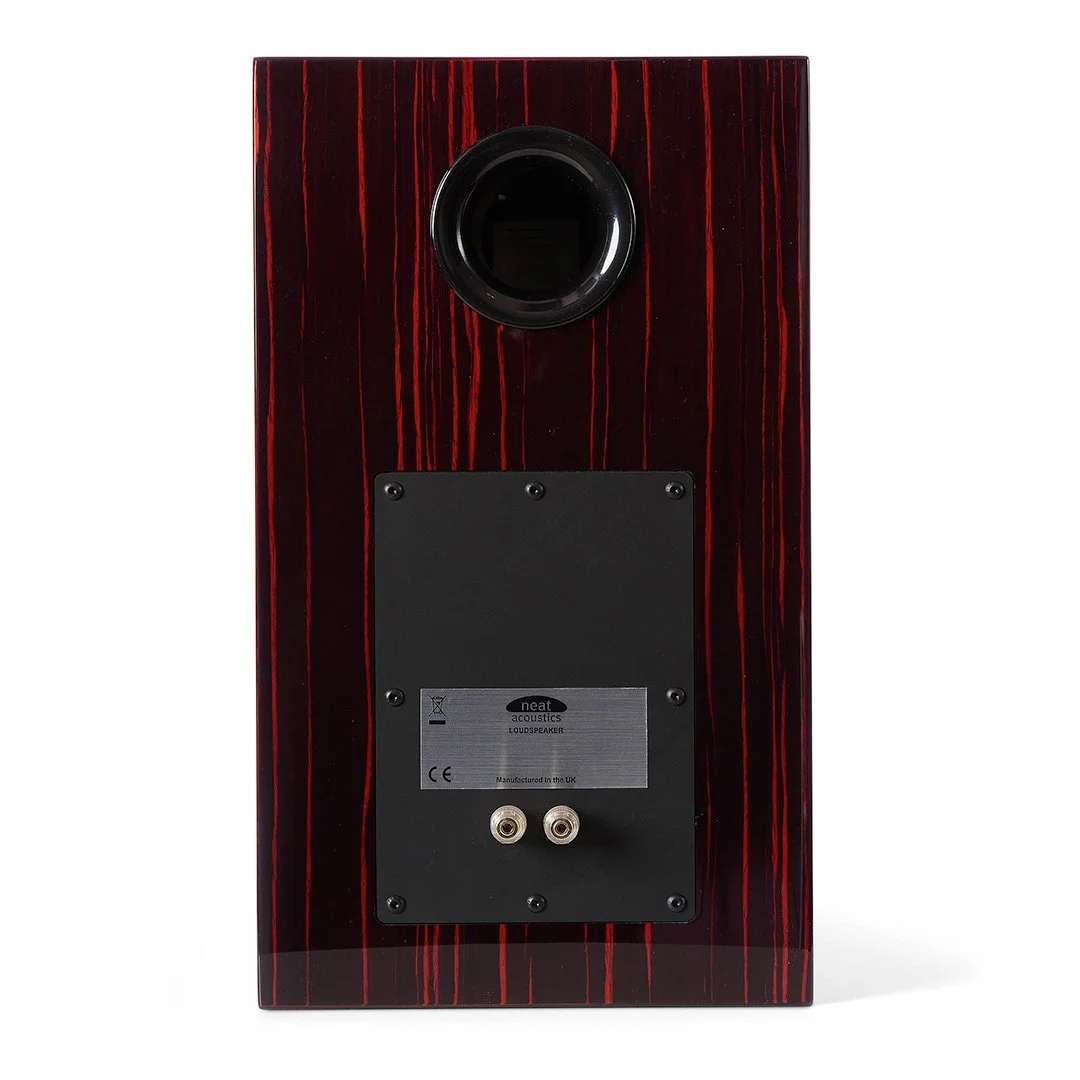

ENCLOSURE TYPE: Two-way Iso-baric/regulated reflex.
WEIGHT: 11kg each
SHIPPING WEIGHT: 28kg per pair
SENSITIVITY: 88dB/1 watt
REC. AMP POWER: 25 to 100 watts
IMPEDANCE: 4 ohm

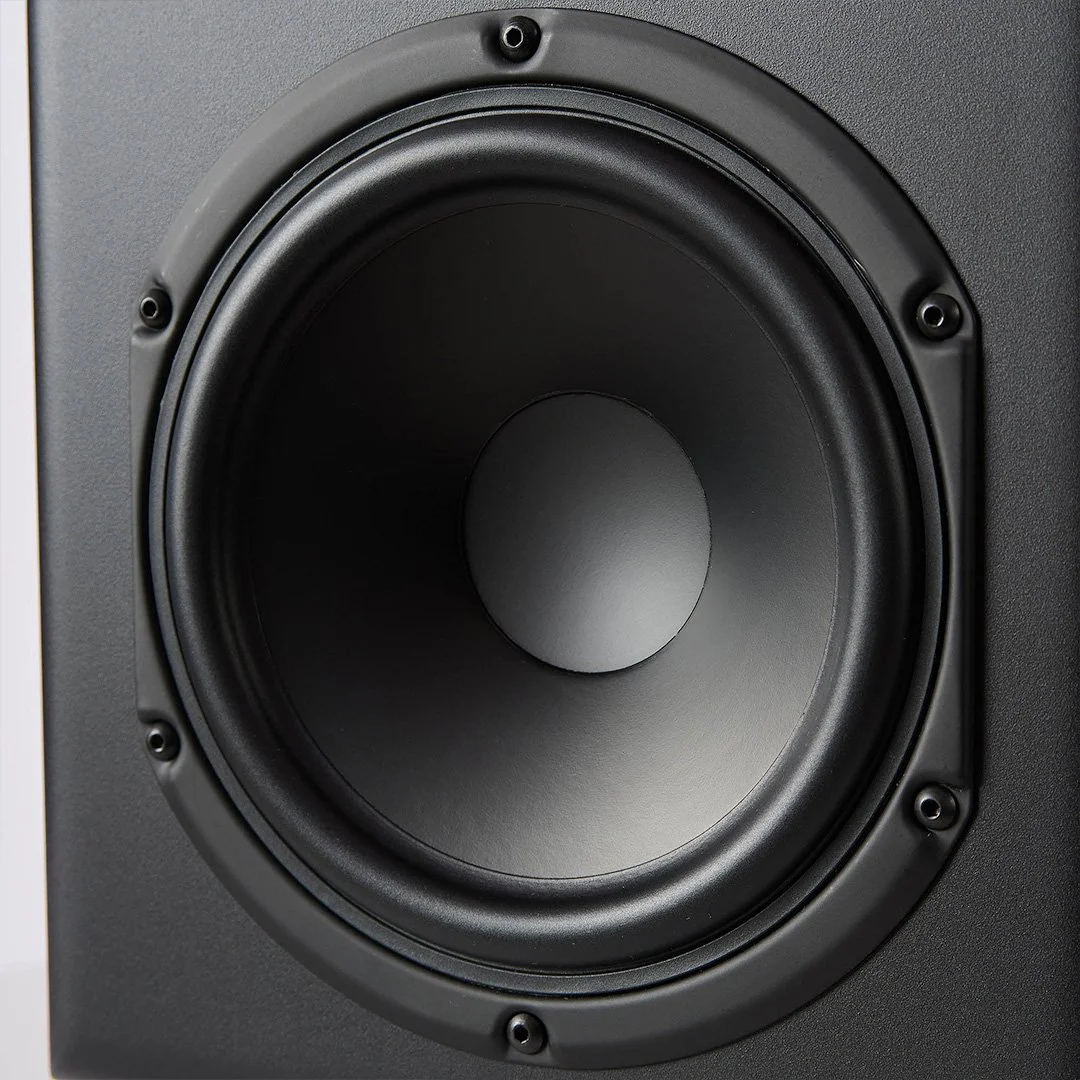

BASS/MIDRANGE: 2 x 170mm treated paper cone type.

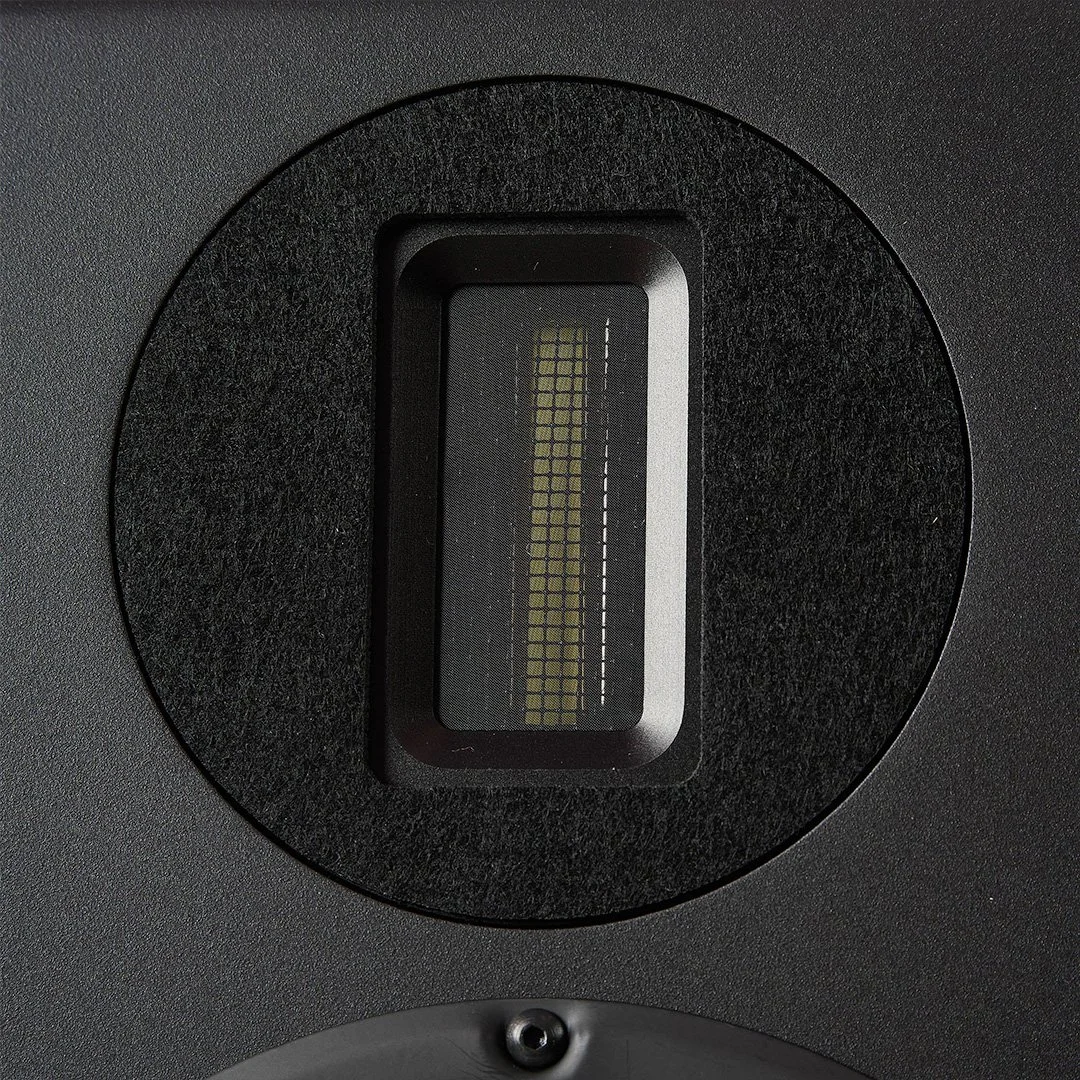

HIGH FREQUENCY UNIT: 60mm true-ribbon type.
